Product application:
In ultra-high voltage direct current transmission (HVDC) or ultra-high voltage direct current transmission (UHVDC) systems, the harmonics generated by the converter have a significant impact on the transmission quality. To eliminate these harmonic effects, filters are generally installed at the converter station. Filter resistors are an important component of the filter and are mainly suitable for high-voltage/ultra-high voltage transmission and transformation systems, factory power supply and distribution systems, and other damping filter circuits or reactive power compensation circuits to eliminate or reduce harmonics.
Product features:

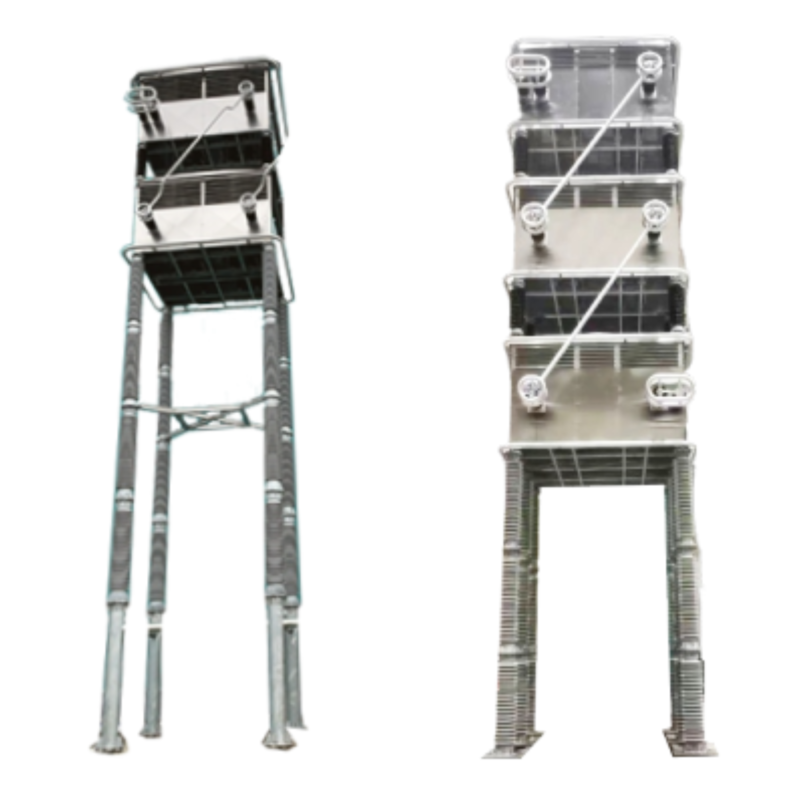

- Ultra high voltage filter resistors are made of specialized alloy materials as resistor sheets and wires, which are punched or woven into various sheet-like and mesh units through special processes;
- The resistor is made of specialized nickel chromium alloy and can withstand a maximum working temperature of 1200 degrees Celsius;
- High power, with a single chip power of up to 3000W;
- The resistance change is small, and the resistance change rate can be controlled at 10% under rated high temperature conditions;
- Strong reliability, multiple insulation, special material insulation and support are used for both the inside and outside of the resistor and the resistor components;
- High pollution level, reliable heat dissipation while ensuring insulation in harsh outdoor environments.
Ordering Notice:
- Please provide detailed parameters of the product.
- Please provide us with as much product related information as possible regarding the product specifications, product drawings, product nameplates, product photos, etc. that you need to order, so that we can provide you with a faster and more accurate quotation.
- Please provide the product specifications, product drawings, product nameplates, product photos, etc. that you need to order, send email to: shanghaizhiyou@gmail.com We will reply as soon as we receive the email.
- You can also quickly contact our sales manager Yang through the following contact information: WeChat：+ 86 13122066665 or WhatsApp:+ 86 189 3091 2328.
We are willing to serve you with our professionalism, sincerity, and integrity.
Targeted Functionality for HVDC SystemsThe VSC-HVDC Starting Resistor is engineered primarily for HVDC converter stations, serving as a critical starting resistor to provide harmonic attenuation within damping filter circuits. Intended users include power transmission engineers and system integrators managing ultra-high voltage direct current (UHVDC) projects. This electrical resistor acts as a damping element to mitigate resonance and harmonic distortions produced by the converters, ensuring improved system stability and voltage regulation over long-distance transmission. It supports effective control of transient conditions during startup and steady state operations in complex power networks.Advanced Material Composition and Technical SpecificationsConstructed from specialized nickel-chromium alloy sheets and meshes, the resistor achieves both high power capacity and thermal endurance. It operates reliably at temperatures up to 1200°C with a power rating of up to 3000 W per chip, exhibiting minimal resistance drift within 10% under rated conditions. The structural design incorporates robust insulation and protective features, enabling functionality in severe pollution and outdoor exposure environments. This ultra high voltage filter resistor meets rigorous electrical and mechanical standards, crucial for maintaining the dependable performance required in HVDC and UHVDC filter banks.Industrial Implementation and System Integration ValueDeployed within high-voltage and ultra-high voltage transmission infrastructure, this resistor enables effective harmonic filtering and reactive power compensation at converter stations. Its durability and precision facilitate integration in demanding environments such as power grids for hydropower, nuclear, and renewable energy sectors. By enhancing electromagnetic compatibility, the resistor contributes to system reliability and reduces maintenance cycles. Suppliers and electrical contractors value this product for its compliance with international quality certifications and its compatibility with complex grounding and filter resistor assemblies.Product AdvantagesInnovative Design and Modular ConfigurationThe VSC-HVDC Starting Resistor features a modular design optimized for seamless incorporation into converter station filter circuits. Its composite nickel-chromium alloy construction provides high stability and heat resistance essential for ultra-high voltage applications. Integrated insulation and rugged protective housing allow deployment in harsh environmental conditions, including areas with severe pollution and outdoor exposure. This design facilitates easy electrical and mechanical integration with other filter resistor and neutral grounding resistor components, streamlining assembly and maintenance operations in HVDC substations.Superior Performance and Reliability in OperationThis resistor ensures consistent resistance values with less than 10% variation at high-temperature operation, promoting stable voltage regulation and harmonic suppression. Its high single-chip power capability of 3000 W supports effective dissipation of transient loads during starting and running phases. The product’s robust thermal tolerance and durable insulation extend operational life and reduce failure rates, maximizing system uptime. End users benefit from improved harmonic damping and voltage stability, enhancing overall grid performance and lowering operational risks associated with grounding of electrical equipment.Use ScenariosApplication in HVDC Converter Station Damping FiltersIn large-scale HVDC and UHVDC transmission projects, the VSC-HVDC Starting Resistor plays a fundamental role in damping filter circuits designed to suppress harmonics caused by converter operations. Installed outdoors at converter stations, it withstands extreme environmental conditions while maintaining precise resistance parameters critical to power quality. The resistor integrates directly with damping resistor networks and filter banks, ensuring electromagnetic compatibility and compliance with transmission reliability standards. Its electrical attributes facilitate smooth start-up transient management and minimize system disturbances, improving grid stability.Role in Reliability Testing and Maintenance of Filter NetworksWithin specialized power system environments, this resistor supports the validation and endurance testing of electrical components subject to high thermal and electrical stress. It is used by engineers to simulate operating conditions of HVDC filters and to verify the robustness of load resistor and filter resistor assemblies. Its consistent performance benchmarks serve as a reference in preventive maintenance workflows and retrofit projects, enhancing lifecycle management of HVDC transmission equipment. The product’s adaptability to diverse applications, including harmonic filtering and reactive power compensation, increases operational value for utility companies and electrical contractors.FAQWhat materials are used in the VSC-HVDC Starting Resistor?The VSC-HVDC Starting Resistor is made from a specialized nickel-chromium alloy formed into sheets and meshes. This ensures high durability, stable resistance, and supports its role as a robust ultra high voltage filter resistor in HVDC systems.How can I customize or order the VSC-HVDC Starting Resistor?Ordering requires detailed product specifications, including electrical parameters, technical drawings, and product nameplates. Contact the manufacturer directly to discuss your project needs and receive a customized quote tailored to your HVDC system requirements.What installation environment is suitable for this starting resistor?The resistor is designed for harsh outdoor environments with robust insulation and protection against extreme pollution levels. It supports operation in HVDC/UHVDC converter station filters, ensuring reliable harmonic damping under high temperatures up to 1200°C.How should maintenance and testing be handled for these resistors?Regular field inspections and endurance testing are recommended to ensure the high-temperature stable resistance remains within the ±10% drift specification. Proper maintenance supports sustained performance in filter resistor circuits critical to HVDC system stability.
