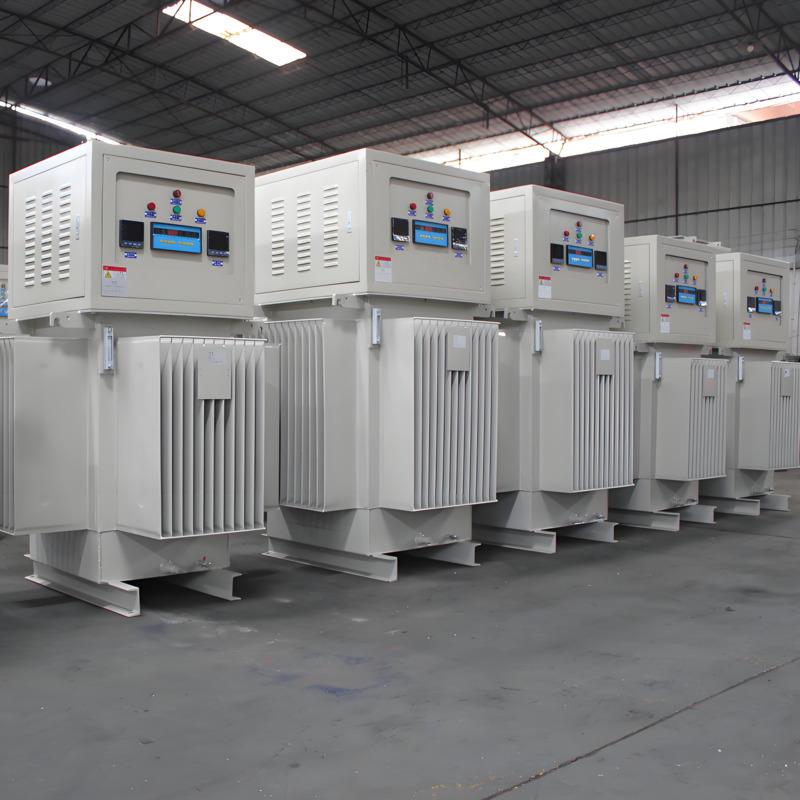

Special Voltage Stabilizer for Power Construction (Long Distance Dedicated Boost Regulator)
Product model: Special Voltage Stabilizer for Power Construction (Long Distance Dedicated Boost Regulator), oil immersed contactless regulator (300~8000KVA).
Applicable scenarios: ultra long distance use such as mining and tunnel construction.
Oil immersed induction non-contact automatic voltage regulator is specifically designed for power lines that are too far away in tunnels, mine tunnels, and other areas, causing low voltage at the end of the power supply, resulting in various mining machines being unable to start and work normally, and even burning various electrical equipment. Our company's power stabilizer cabinet can automatically stabilize the input voltage (304-456V) range to 400V output (input and output voltages can be customized according to actual needs), enabling various end machines to work normally. This voltage regulator cabinet has the characteristics of strong overload capacity, moisture-proof and waterproof, contactless, maintenance free, overload protection, short circuit protection, and automatic adjustment. Since its launch, it has received high praise from supporting users of various mining enterprises.
Product Features:
The internal body is a motor induction voltage regulator, without any contact components or wear components (such as carbon brushes). It can withstand both sudden waves and nonlinear load impacts. The main characteristics are sturdy, durable, and easy to maintain.
Adopting modular design, all components have been standardized. Just keep the interior clean without any special maintenance.
The protection facilities are the most complete, with software filtering and anti false alarm functions.
Dual control circuit main and backup switching function; The fault recording function has built-in memory, with a maximum of 200 under phase and reverse phase protections; Input high/low voltage protection; Output high/low voltage protection; Output overload protection; High temperature protection.
This voltage regulator can withstand 100% load and can be used continuously, allowing 2-3 times the instantaneous current to pass through without damaging the device.
Technical parameters:
Product Name: Industrial Induction Voltage Regulator (Remote Dedicated Boosting Voltage Regulator)
Specification and model: 300-800KVA
Voltage stabilization range: 380V ± 15% Voltage stabilization accuracy: 380 ± 1%
Response time: ≤ 4ms/step efficiency ≥ 98%
Waveform distortion: none
Insulation resistance:> 2MΩ
Working temperature: (-5 ℃~+40 ℃)
This system uses a 16 bit microcontroller to form the control core. Through precise sampling of input voltage, output voltage, and load current IF signals, A/D conversion, the microcontroller makes intelligent judgments and issues control instructions. The polarity and size of Δ U are changed through the conduction combination of bidirectional thyristors to compensate for the input voltage Ui and maintain stable output voltage.
In addition, this product can also be equipped with optional accessories
Ordering Notice:
Engineered for Heavy-Duty Use
Introducing the Special Voltage Stabilizer for Power Construction, a robust solution designed to meet the demanding needs of long-distance power applications such as mining and tunnel construction. This voltage stabilizer is an oil-immersed, contactless regulator with a capacity ranging from 300 to 8000KVA, making it ideal for environments where power lines extend over great distances. The dc voltage regulator is engineered to automatically stabilize input voltages between 304-456V to a consistent 400V output, ensuring that all connected machinery operates smoothly and efficiently. With its strong overload capacity, moisture-proof and waterproof design, and maintenance-free operation, this voltage stabilizer is built to withstand the harshest conditions while providing reliable performance.
Seamless System Integration
Our Special Voltage Stabilizer is not just a standalone unit; it is designed for seamless integration into existing power systems. The modular design allows for easy maintenance and upkeep, with standardized components that require no special attention beyond keeping the interior clean. This voltage stabilizer features complete protection facilities, including software filtering, anti-false alarm functions, and dual control circuit main and backup switching. It also offers comprehensive protection against input and output high/low voltage, overload, and high temperatures. For those looking to enhance their power systems further, this voltage stabilizer can be equipped with optional accessories such as RS232/485 communication interfaces, two-stage or three-stage EMI filters, output isolation transformers, and lightning protection devices. Additionally, it supports multiple output control switches and two power automatic switching devices (ATS), making it a versatile choice for any power construction project.
Built for Modern Industry
As one of the leading automatic voltage regulator manufacturers, we understand the importance of precision and reliability in industrial applications. Our Special Voltage Stabilizer utilizes a 16-bit microcontroller to form the control core, ensuring precise sampling of input voltage, output voltage, and load current IF signals. This advanced system allows for intelligent judgments and control instructions, maintaining stable output voltage even under fluctuating conditions. The voltage regulators in parallel capability ensures that the system can handle 100% load continuously, withstanding 2-3 times the instantaneous current without damage. This makes it an ideal choice for industries that require consistent and reliable power supply, such as those utilizing three phase transformers. With a response time of ≤ 4ms/step and efficiency ≥ 98%, our voltage stabilizer delivers unmatched performance and reliability. Trust in our expertise and commitment to quality, and choose the Special Voltage Stabilizer for Power Construction for your next project.
Product Advantages
1. Unmatched Durability and Longevity
The Special Voltage Stabilizer for Power Construction is engineered with a contactless, oil-immersed design, ensuring a long service life and robust performance. Unlike traditional dc voltage regulators, this stabilizer eliminates wear components such as carbon brushes, making it highly durable and capable of withstanding sudden waves and nonlinear load impacts. This innovation sets it apart from other voltage stabilizers, providing a reliable solution for demanding environments like mining and tunnel construction.
2. Superior Overload Capacity
This voltage regulator boasts an exceptional overload capacity, allowing it to handle 100% load continuously and accommodate 2-3 times the instantaneous current without damage. This feature is crucial for operations requiring voltage regulators in parallel to manage fluctuating power demands efficiently. The stabilizer's ability to maintain stable output under high load conditions ensures uninterrupted performance, making it a preferred choice among automatic voltage regulator manufacturers.
3. Comprehensive Protection Features
Equipped with the most complete protection facilities, this voltage stabilizer offers dual control circuit switching, fault recording, and high/low voltage protection. Its advanced software filtering and anti-false alarm functions enhance operational safety, while the built-in memory supports up to 200 phase protections. These features make it an ideal solution for industries relying on three phase transformers, where consistent and secure power delivery is paramount.
4. Precision and Efficiency
The stabilizer's 16-bit microcontroller ensures precise voltage regulation with a stabilization accuracy of 380 ± 1% and a response time of ≤ 4ms/step. This high level of precision is unmatched by conventional dc voltage regulators, providing efficiency rates of ≥ 98% without waveform distortion. Such precision is vital for maintaining the integrity of sensitive equipment, positioning this stabilizer as a leader among automatic voltage regulator manufacturers.
5. Customizable and Versatile
Designed to meet diverse operational needs, this voltage regulator can be customized with optional accessories like RS232/485 communication interfaces, EMI filters, and output isolation transformers. Its adaptability makes it suitable for various applications, including those requiring voltage regulators in parallel or integration with three phase transformers. This versatility ensures that businesses can tailor the stabilizer to their specific requirements, enhancing both functionality and return on investment.
About Us
Shanghai Powers is a leading provider of advanced voltage regulation solutions, specializing in products designed for challenging environments such as mining and tunnel construction. Our Special Voltage Stabilizer for Power Construction is engineered to address the unique demands of ultra-long distance power lines, ensuring stable voltage supply and protecting critical equipment from damage. With a focus on innovation and quality, our oil-immersed, contactless voltage regulators offer robust performance, featuring strong overload capacity, moisture-proof and waterproof design, and comprehensive protection facilities. Our commitment to excellence is reflected in the high praise from our clients across various industries. At Shanghai Powers, we are dedicated to delivering reliable, maintenance-free solutions that enhance operational efficiency and safety. Trust us to be your partner in powering progress with integrity and professionalism.
Contact Shanghai Powers today to upgrade your power construction projects with our Special Voltage Stabilizer. Let’s drive efficiency and reliability together!
FAQ
Who are we?
We are Shanghai Zhiyou Electric Manufacturing Co., Ltd., a leading provider of specialized voltage stabilizers designed for power construction, particularly in challenging environments like mining and tunnel construction. Our products are renowned for their reliability and advanced technology.
How can we guarantee quality?
Our voltage stabilizers are built with a contactless design, ensuring durability and a long service life. We employ a modular design for easy maintenance and incorporate comprehensive protection facilities, including overload and short circuit protection, to guarantee top-notch quality.
What can you buy from us?
You can purchase our Special Voltage Stabilizer for Power Construction, which is an oil-immersed, contactless regulator ranging from 300 to 8000KVA. It is ideal for ultra-long distance applications, ensuring stable voltage output for various mining and construction equipment.
Why should you buy from us not from other suppliers?
Our voltage stabilizers offer unmatched features such as strong overload capacity, moisture-proof and waterproof design, and automatic adjustment capabilities. We provide customization options for input and output voltages, ensuring our products meet your specific needs.
What services can we provide?
We offer customization of voltage stabilizers to fit your specific requirements, along with optional accessories like communication interfaces and lightning protection devices. Our dedicated support team is available to assist with product specifications and provide accurate quotations.
Can I customize this product for my business?
Yes, our voltage stabilizers can be customized according to your specific input and output voltage requirements. We also offer optional accessories to enhance functionality, ensuring the product perfectly fits your business needs.
How fast can I receive my order?
We strive to process orders efficiently and provide prompt delivery. For specific delivery timelines, please contact our sales team, who will ensure your order is prioritized and shipped as quickly as possible.
