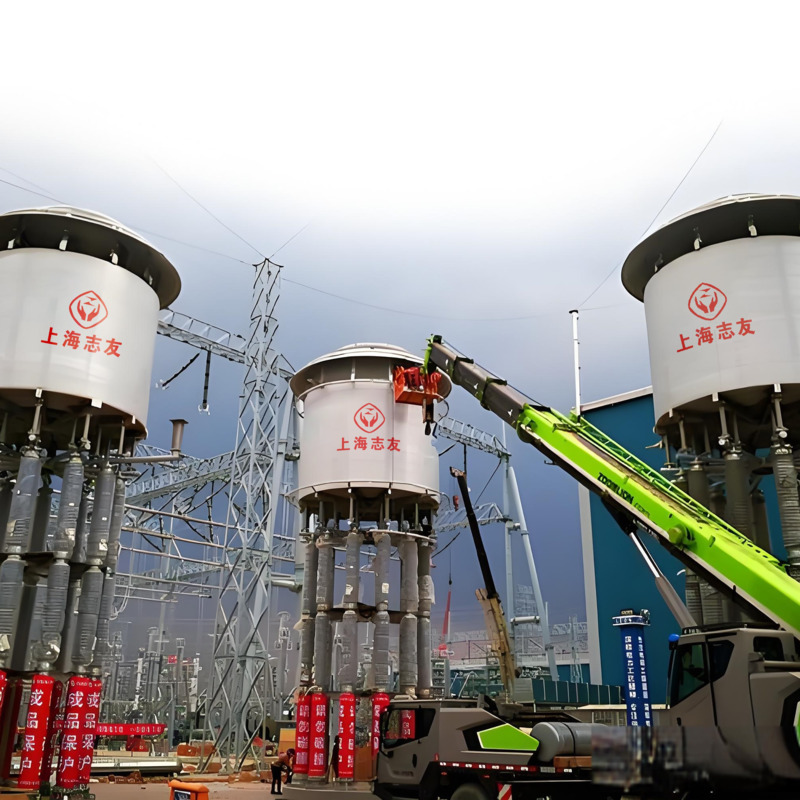

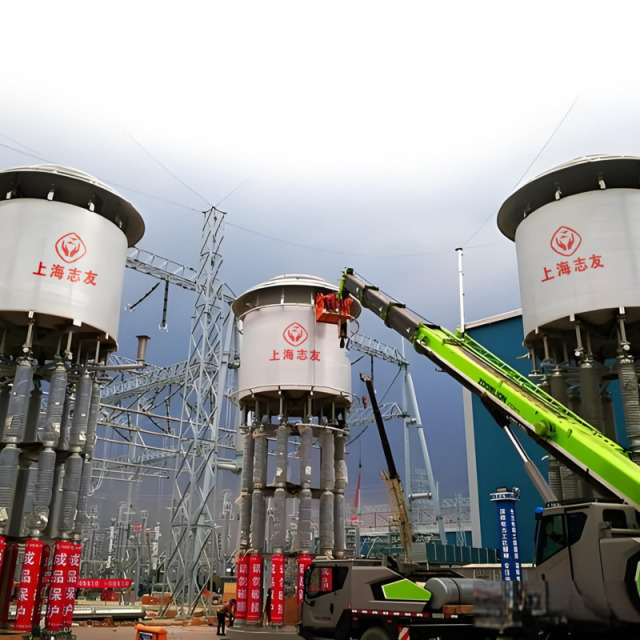

Name: Shunt Reactor
Brand: Shanghai Zhiyou
Availability: InStock
Rating: 5 (1 reviews)

Description

Product Standard：

GB/T 1094.6-2011 IEC 60076-6：2007

GB/T 1094.1-2011 IEC 60076-1：2011

GB/T 1094.3-2017 IEC 60076-3：2013

Technical parameter table:

Part No.	System Rated voltage kV	Terminal voltage of reactor kV	Rated reactance Ω	Rated current A	Single- phase power kvar	Single- phase loss75̊C kW	Overall dimension		Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
Part No.	System Rated voltage kV	Terminal voltage of reactor kV	Rated reactance Ω	Rated current A	Single- phase power kvar	Single- phase loss75̊C kW	Ds mm	H mm	Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode

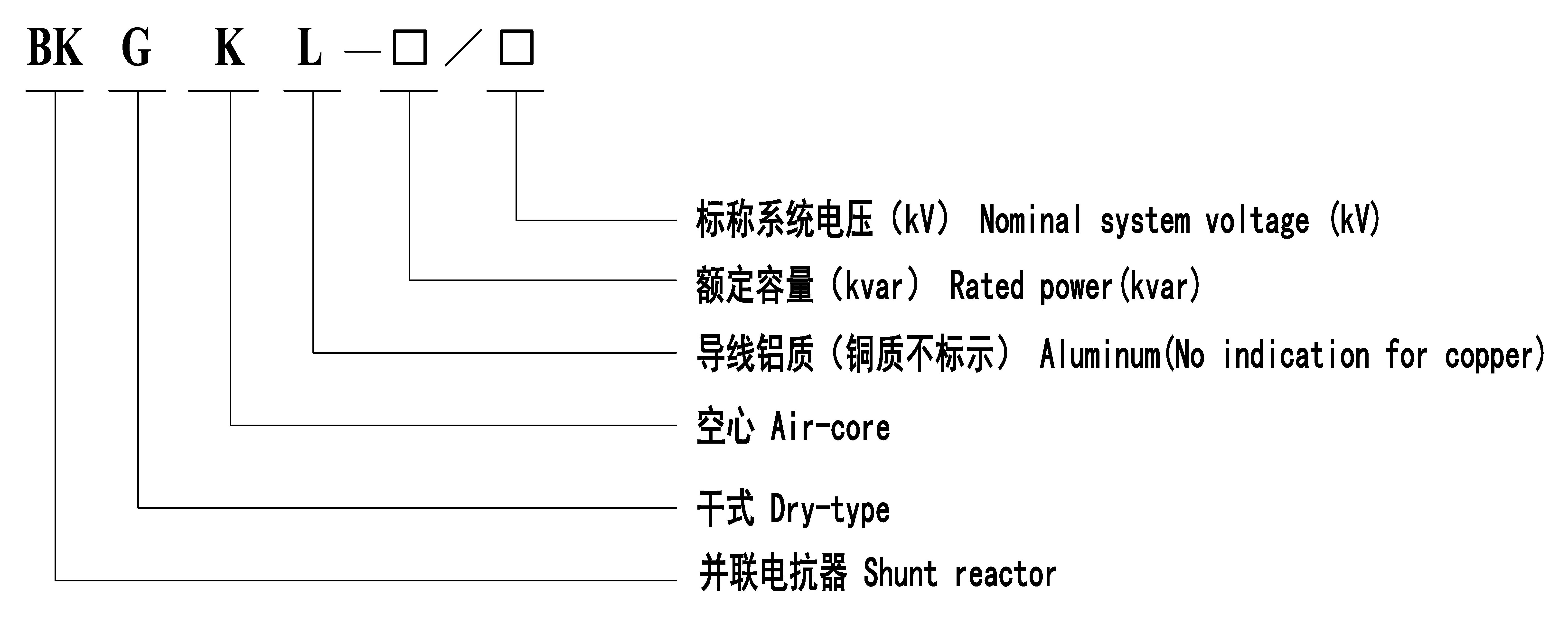

BKGKL-500/10	10	10/√3	66.67	86.60	500	7.8	1440	1852	1250	1030	3 phase side by side
BKGKL-1000/10		10/√3	33.33	173.20	1000	10.6	1480	1752	1200	1800
BKGKL-2000/ 10		10/√3	16.67	346.40	2000	14.7	1790	2152	1500	2520
BKGKL-3333/10		10/√3	10.00	577.28	3333	18.5	1950	2204	1640	3350
BKGKL-4000/ 10		10/√3	8.33	692.80	4000	22.8	2240	1470	2000	2520
BKGKL-5000/ 10		10/√3	6.67	866.00	5000	25.6	2120	1520	1900	2680
BKGKL-10000/ 10		10/√3	3.33	1732.00	10000	44.0	2530	1760	2410	4300
BKGKL-15000/ 10		10/√3	2.22	2598.00	15000	54.2	2550	1780	2280	5600
BKGKL-2000/35	35	35/√3	204.00	99.00	2000	15.2	2230	2320	2030	2980
BKGKL-3333/35		35/√3	122.40	165.00	3333	19.5	2280	2504	2000	4360
BKGKL-5000/35		35/√3	81.60	247.50	5000	25.0	2033	2580	1750	3960
BKGKL-8000/35		35/√3	51.00	396.00	8000	36.0	2530	2520	2390	5520
BKGKL-10000/35		35/√3	40.80	495.00	10000	44.8	2770	2430	2500	6000
BKGKL-15000/35		35/√3	27.20	742.00	15000	49.0	2820	2380	2530	7500
BKGKL-20000/35		35/√3	20.41	990.00	20000	54.5	2930	2580	2650	8890
BKGKL-31500/35		35/√3	12.96	1559.00	31500	88.0	3060	2360	2780	10800
BKGKL-20000/66	66	66/√3	72.60	524.85	20000	60.0	2860	3680	2700	11600
BKGKL-30000/66		66/√3	48.40	787.27	30000	84.0	3220	3680	3000	13750
BKGKL-40000/66		66/√3	36.30	1049.70	40000	88.0	3380	3750	3200	18500

1 Above technical parameters are only for aluminum windings. For copper windings, we would provide separately.

2 The products produced by Shanghai Zhiyou include but are not limited to the products listed in the table. If the customer has specified parameters, they need to confirm separately.

3 The data in the table are only for reference. The final interpretation right is owned by Shanghai Zhiyou.

Ordering Notice:

Please provide detailed parameters of the product.
Please provide us with as much product related information as possible regarding the product specifications, product drawings, product nameplates, product photos, etc. that you need to order, so that we can provide you with a faster and more accurate quotation.
Please provide the product specifications, product drawings, product nameplates, product photos, etc. that you need to order, send email to: shanghaizhiyou@gmail.com We will reply as soon as we receive the email.
You can also quickly contact our sales manager Yang through the following contact information: WeChat：+ 86 13122066665 or WhatsApp:+ 86 189 3091 2328.

We are willing to serve you with our professionalism, sincerity, and integrity.

Built by a Leading Reactor Manufacturer for Modern Power Grids
ZHIYOU is a professional reactor manufacturer offering a full line of high-performance shunt reactors tailored for reactive power compensation in high-voltage transmission systems. As a top supplier among reactors companies, we deliver trusted solutions to global clients seeking stable grid operation. Our shunt reactor series includes dry-type reactors, iron core reactors, and oil immersed reactors, widely used in substations, solar, and wind power systems.
Our reactors are available in various current ratings, including 1000A reactor, 2000A reactor, 2500A reactor, and up to 8000A reactor, and voltage levels such as 10kV reactor, 35kV reactor, and 66kV reactor.

Enhance Voltage Control with Reliable Shunt Reactors
ZHIYOU's shunt reactors are engineered to absorb capacitive reactive power generated by long transmission lines or cables. They effectively limit voltage rises, reduce harmonic resonance, and ensure stability across the electrical network. In particular, our dry-type shunt reactors offer fire safety, environmental compatibility, and long lifecycle—preferred in dense urban or industrial environments.
We also provide customized series reactors, filter reactors, and neutral grounding reactors to meet project-specific power quality requirements.

Advanced Dry-Type Design with High-End Insulation
Unlike conventional oil immersed reactors, ZHIYOU's dry-type reactors utilize cast resin insulation and natural air cooling, making them low maintenance and environmentally safe. These reactors are compact, noise-reduced, and ideal for indoor or confined installations. Every unit can be equipped with thermal sensors for temperature monitoring, offering safety comparable to ABB reactor quality standards.
Our product line also includes variants such as SVG reactors, DC reactors, TCR reactors, and damping reactors to support flexible grid operation and advanced reactive power control.

Versatile Options and Global-Grade Customization
ZHIYOU offers a wide range of types of reactors, including custom-designed units for renewable energy systems, industrial motors, and substation applications. Whether you need a standard shunt reactor, a harmonic filter reactor, or a starting reactor for high-inrush conditions, we can engineer solutions with exact impedance values and reactance.
We support OEM/ODM and bulk supply with competitive reactor price, making us a trusted source for utilities, EPC contractors, and equipment integrators worldwide. Our reactores are exported to over 80 countries and widely recognized for quality and performance.

Product Advantages

Comprehensive Range of High-Voltage Reactors
ZHIYOU provides a full range of shunt reactors, current limiting reactors, series reactors, and filter reactors with voltage levels from 10kV reactor, 35kV reactor, to 66kV reactor, serving diverse grid and industrial needs.
Dry-Type and Oil-Immersed Options for Flexible Applications
Choose from dry-type reactors for safer, indoor environments or oil immersed reactors for heavy-duty outdoor substations. Both types are engineered to meet the performance and safety standards expected of top reactor manufacturers.
Custom-Built to Handle High Currents
Our reactors are available in ratings such as 1000A, 2000A, 2500A, 3000A, 4000A, and 8000A, supporting stable operation in high-load applications including substations, motors, and industrial grids.
Enhanced Voltage Control and Power Quality
Whether used as TCR reactors, damping reactors, or neutral grounding reactors, ZHIYOU's designs effectively manage voltage spikes, harmonics, and reactive power—ensuring system reliability and energy efficiency.
Global Export and Competitive Reactor Price
As a trusted reactor brand, ZHIYOU offers OEM, ODM, and bulk delivery to international partners, backed by competitive reactor price positioning and long service life.
