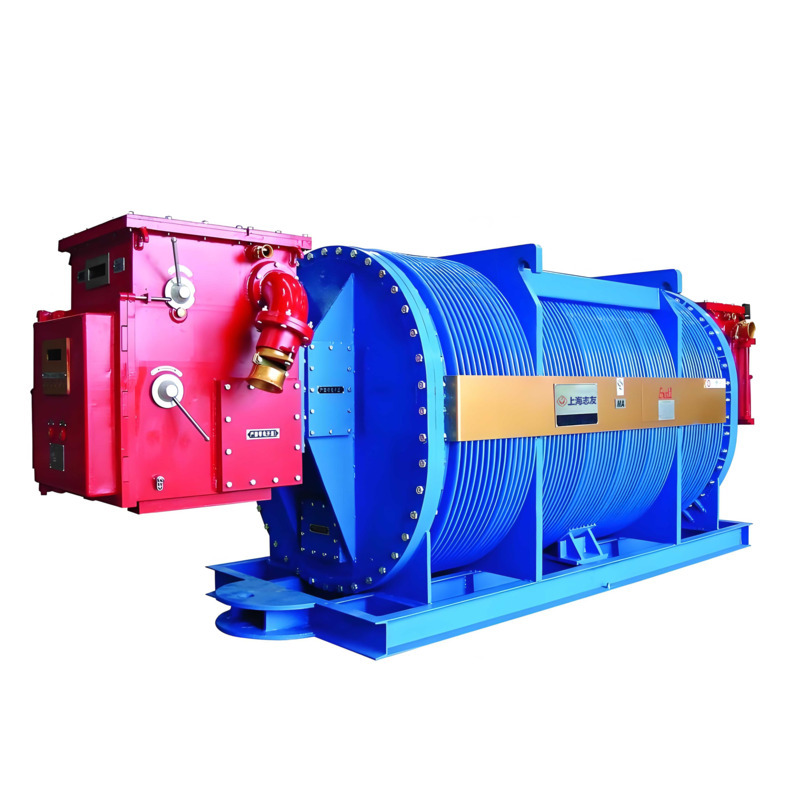

Mining Mobile Outdoor Compact Substation
(Mining mobile outdoor box type substation)
Product Introduction:
Mining mobile substations are divided into two types: vehicle mounted and sled mounted. They adopt modular design and integrate high-voltage switch rooms, transformer rooms, and medium and low voltage switch rooms. The vehicle mounted type achieves efficient movement through special transport flatbed trucks and is suitable for power supply in mining ground mining; Sled installation on reinforced steel chassis, without the need for foundation, suitable for open-pit mining and mobile power supply needs in remote areas. This substation has the characteristics of high reliability, green environmental protection, convenient installation, and flexible mobility, making it an ideal solution for complex mine power supply.
Scope of application:
Mining mobile substations are widely used in various mining power supply scenarios, including open-pit mining, underground mining, and mobile power supply needs in remote areas. The vehicle mounted type is suitable for mobile power supply of mining ground mining equipment, while the sled type is suitable for open-pit mining and power supply situations without fixed foundations. Especially suitable for scenarios with complex power supply environments that require frequent transfers or rapid deployment.
Product Description:
Product features:
High reliability: The system runs stably, has high reliability, can adapt to complex environments, and meets the mobile power supply needs of mines and remote areas.
Flexible and convenient: Adopting a modular structure, the design scheme is flexible and easy to move, adapting to various mining power supply needs.
Green and environmentally friendly: The design meets environmental requirements, with low noise and no pollution during operation, which helps in the construction of green mines.
Easy installation: sled and vehicle mounted designs, no foundation required for installation, convenient for transportation and quick on-site deployment.
Main parameters:
Rated capacity: 100kVA~5000kVA
Input voltage: 10kV/35kV (customizable according to customer needs)
Output voltage: 0.69kV (customizable according to customer needs)
Rated frequency: 50Hz/60Hz
Connection group: Dyn11 or Yyn0
Insulation level: F level/H level
Working environment temperature: -30 ℃ to+40 ℃
Shell protection level: IP54 (dustproof, waterproof, suitable for harsh environments)
Control method: Intelligent control system
Execution standards:
GB/T 17467-2020 High/Low Voltage Prefabricated Substations
GB/T 6451-2020 Technical Parameters and Requirements for Oil immersed Power Transformers
GB/T 10228-2015 Technical Parameters and Requirements for Dry type Power Transformers
GB/T 1094.1-2013 Power Transformers Part 1: General Principles
GB 4208-2017 Degrees of Protection Provided by Enclosures (IP Code)
Note: The above Chinese national standards are higher than or equivalent to the corresponding IEC standards.
Technical advantages:
Integrating electromagnetic optimization design, parametric drawing, performance analysis and structural optimization, automatic drawing, and other functions of transformers to achieve resource sharing in transformer design, as well as searching, modifying, and version control of various data information.
The current field, temperature field, electric field, leakage magnetic field, wave process, and short-circuit force of transformers. The research and design of each series of products are carried out through simulation analysis of flow and temperature fields to determine the average temperature rise of the coil and the hot spot temperature seat, ensuring product performance.
By collecting key data such as temperature, current, voltage, vibration, and grid harmonics of transformers, online power quality analysis, fault alarms, and installation on mobile phones can be achieved.
Ordering Notice:
We are willing to serve you with our professionalism, sincerity, and integrity.
