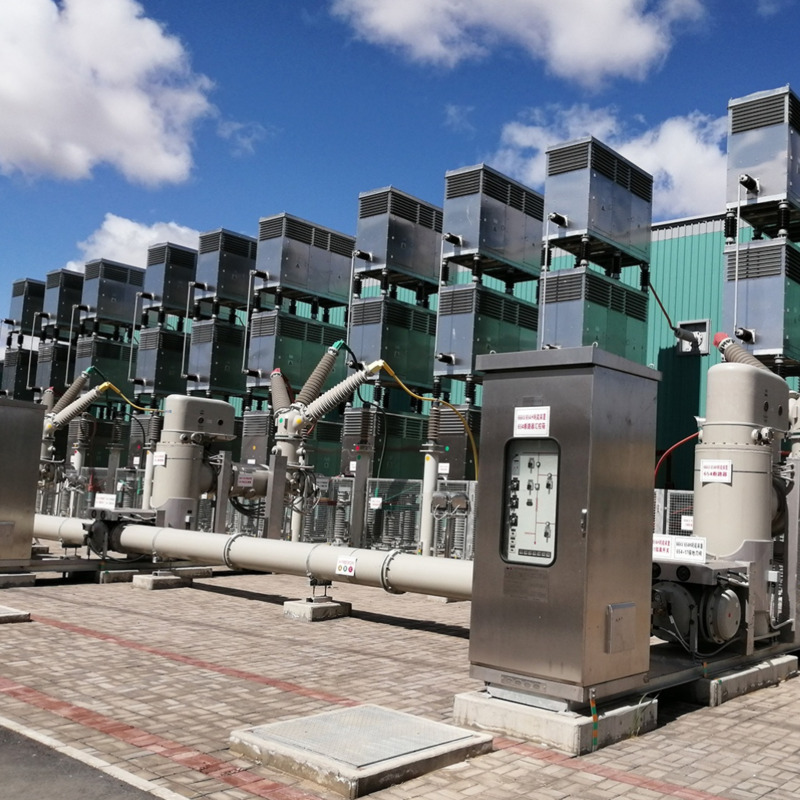

Grounding Protection Device
Application field: According to different capacitor currents, it can be divided into high resistance grounding and low resistance grounding. At present, neutral point grounding protection devices are widely used in urban distribution networks, large industrial parks, power plants, offshore platform distribution systems, large chemical enterprises, etc;
Performance characteristics: This series of products is made of high-quality stainless steel alloy resistance elements, with low temperature rise coefficient and small resistance change rate. It adopts ceramic and mica double insulation, with high stability performance The heat capacity of the resistor is large: Through unique processing technology, the rated power of a single resistor can reach 1200 watts.
Product application:
A neutral point grounding protection device is a current limiting electrical protection device connected between the neutral point of a generator or transformer and the ground. When a fault occurs in the power grid, the neutral point voltage of the power supply will be offset, especially in cable powered power grid systems. When the current is greater than the specified value, it will generate arc grounding overvoltage, which greatly increases the ground voltage of the non fault phase and causes insulation damage to the equipment, resulting in two-point or multi-point grounding short circuit and power outage accidents. The purpose of using neutral point resistance grounding method is to inject resistive current into the fault point, making the grounding fault current have resistance capacitance properties, reducing the phase difference with voltage, lowering the reignition rate of the fault point current after zero crossing and arc extinguishing, limiting the overvoltage within a certain level, improving the sensitivity of relay protection equipment to achieve tripping, rapid search for fault lines and backup switching, and effectively protecting the normal operation of the system.
Grounding protection devices are widely used in the secondary and stator side neutral points of transformers and generators. After connecting a resistor in series with the neutral point of the equipment (or using a grounding transformer to extract the neutral point), intermittent arc overvoltage electromagnetic energy is discharged, causing the neutral point potential to decrease and the speed of fault phase recovery voltage rise to slow down, thereby reducing the possibility of arc reignition, suppressing the amplitude of grid overvoltage, and enabling selective grounding protection.
Product features:
Technical features:
Fault current: 1~5000A
System voltage: 0.38kV~110kV (3, 6, 10, 35)
Heating time: 5 seconds, 10 seconds, 30 seconds, 60 seconds, continuous
Resistance (20 ℃): 0.01-1500 Ω
Temperature rise: Short term temperature rise (maximum not exceeding 760 ℃ within 10-60 seconds)
Continuous temperature rise: maximum not exceeding 385 ℃
Maintenance free, quick and convenient disassembly and replacement
Compact structure, easy to install
Shell protection level: IP20～IP56
Optional accessories:
Intelligent monitoring device that can monitor current, temperature, and fault frequency
Isolating switch
Current transformer, voltage transformer
Temperature and humidity controller and heater
Lighting inside the cabinet
Application environment:
Surrounding air temperature:+ 40℃— -15℃
Altitude: 1000m, 3000m
Minimum nominal creepage distance: ceramic material not less than 18mm/kV, organic material not less than 20mm/Kv
Surrounding air temperature:+ 40℃— -35℃
Altitude: 1000m, 3000m
Minimum nominal creepage distance: Level II: 20mm/Kv; Grade III: 25mm/kV; Level IV: 31mm/kV
Ordering Notice:
We are willing to serve you with our professionalism, sincerity, and integrity.
