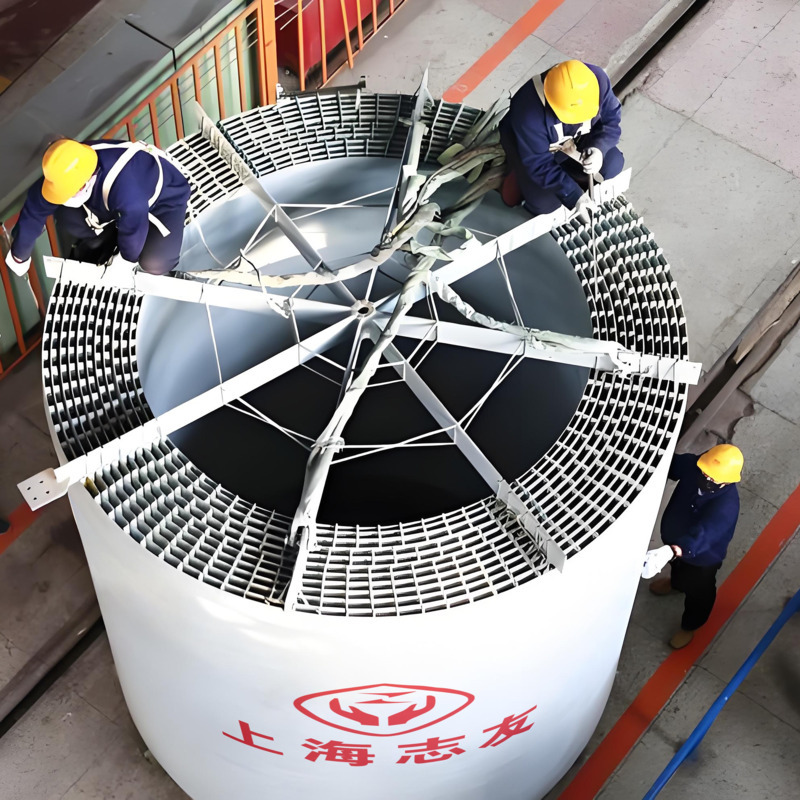

Name: Current Limiting Reactor
Brand: Shanghai Zhiyou
Availability: InStock
Rating: 5 (1 reviews)

Description

Product Standard：

GB/T 1094.6-2011 IEC 60076-6：2007

GB/T 1094.1-2011 IEC 60076-1：2011

GB/T 1094.3-2017 IEC 60076-3：2013

6kV Series

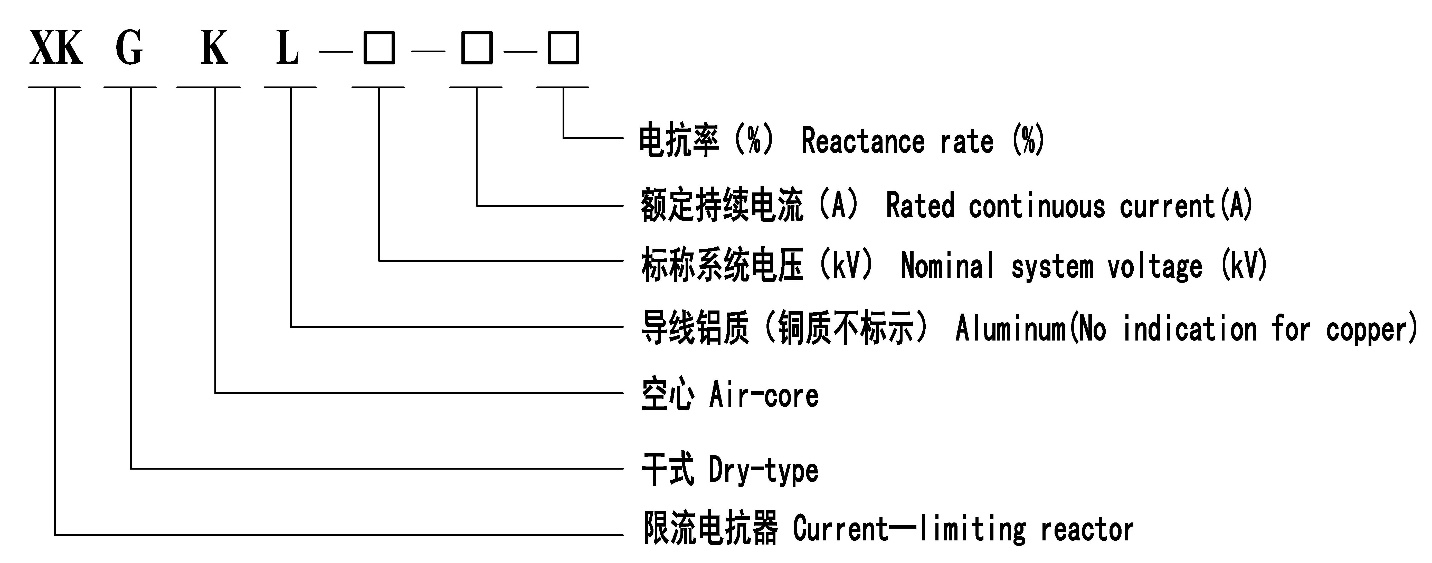

Part No.	Rated current A	Rated reactance rate	Rated reactance Ω	Short- time current kA	Single- phase power kvar	Single- phase loss75̊C kW	Overall dimension		Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
Part No.	Rated current A	Rated reactance rate	Rated reactance Ω	Short- time current kA	Single- phase power kvar	Single- phase loss75̊C kW	Ds mm	H mm	Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
XKGKL-6-800-5	800	5%	0.2170	16.00	139	3.7	1020	740	860	250	side by side
XKGKL-6-800-8		8%	0.3460	10.00	222	5.3	1220	790	1060	320
XKGKL-6-800-10		10%	0.4330	8.00	277	6.4	1300	840	1130	380
XKGKL-6-800-12		12%	0.5200	6.67	333	7.0	1300	820	1100	420
XKGKL-6-1000-5	1000	5%	0.1730	20.00	173	4.4	1150	660	1030	280
XKGKL-6-1000-8		8%	0.2770	12.50	277	6.3	1240	760	1130	360
XKGKL-6-1000-10		10%	0.3460	10.00	346	7.1	1290	840	1180	438
XKGKL-6-1000-12		12%	0.4160	8.33	416	8.4	1350	840	1170	500
XKGKL-6-1500 5	1500	5%	0.1150	30.00	260	6.1	1220	700	1030	340
XKGKL-6-1500-8		8%	0.1850	18.75	416	7.8	1420	780	1230	500
XKGKL-6-1500-10		10%	0.2310	15.00	520	7.5	1470	830	1280	570
XKGKL-6-1500-12		12%	0.2770	12.50	624	9.1	1470	900	1280	610
XKGKL-6-2000-5	2000	5%	0.0870	40.00	346	7.3	1310	700	1120	412
XKGKL-6-2000 8		8%	0.1390	25.00	554	8.1	1410	800	1220	565
XKGKL-6-2000-10		10%	0.1730	20.00	693	9.8	1500	800	1220	662
XKGKL-6-2000-12		12%	0.2080	16.67	831	10.0	1550	830	1280	730
XKGKL-6-2500-5	2500	5%	0.0690	50.00	433	8.6	1400	800	1120	486
XKGKL-6-2500-8		8%	0.1110	31.25	693	10.1	1464	940	1170	690
XKGKL-6-2500 10		10%	0.1390	25.00	866	11.0	1500	980	1230	770
XKGKL-6-2500-12		12%	0.1660	20.83	1039	12.5	1610	940	1510	854
XKGKL-6-3000-5	3000	5%	0.0580	60.00	520	8.1	1500	800	1230	538
XKGKL-6-3000-8		8%	0.0920	37.50	831	10.8	1530	900	1430	740
XKGKL-6-3000-10		10%	0.1150	30.00	1039	12.5	1580	950	1480	850
XKGKL-6-3000 12		12%	0.1390	25.00	1247	15.1	1670	930	1480	940
XKGKL-6-3500-5	3500	5%	0.0494	70.00	606	9.6	1570	750	1380	780
XKGKL-6-3500-8		8%	0.0791	43.75	970	12.3	1570	880	1380	960
XKGKL-6-3500-10		10%	0.0990	35.00	1212	14.2	1620	960	1440	1052
XKGKL-6-3500-12		12%	0.1190	29.17	1455	15.6	1670	980	1490	1323
XKGKL-6-4000-5	4000	5%	0.0433	80.00	693	10.1	1620	760	1430	825
XKGKL-6-4000-8		8%	0.0693	50.00	1109	13.2	1660	880	1480	946
XKGKL-6-4000-10		10%	0.0866	40.00	1386	15.7	1670	980	1480	1125
XKGKL-6-4000-12		12%	0.1040	33.33	1663	17.9	1760	950	1480	1204

10kV Series

Part No.	Rated current A	Rated reactance rate	Rated reactance Ω	Short- time current kA	Single- phase power kvar	Single- phase loss75̊C kW	Overall dimension		Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
Part No.	Rated current A	Rated reactance rate	Rated reactance Ω	Short- time current kA	Single- phase power kvar	Single- phase loss75̊C kW	Ds mm	H mm	Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
XKGKL-10-800-5	800	5%	0.361	16.00	230.9	4.6	1270	770	1170	350	side by side
XKGKL-10-800-8		8%	0.577	10.00	369.5	5.7	1380	840	1280	420
XKGKL-10-800-10		10%	0.722	8.00	461.9	6.5	1480	890	1380	490
XKGKL-10-800-12		12%	0.866	6.67	554.3	7.7	1530	940	1430	547
XKGKL-10-1000-5	1000	5%	0.289	20.00	288.7	6.0	1330	710	1240	370
XKGKL-10-1000-8		8%	0.462	12.50	461.9	7.2	1480	820	1380	530
XKGKL-10-1000-10		10%	0.577	10.00	577.4	8.7	1670	760	1480	580
XKGKL-10-1000-12		12%	0.693	8.33	692.8	9.8	1670	820	1480	630
XKGKL-10-1500-5	1500	5%	0.192	30.00	433.0	8.1	1380	730	1200	477
XKGKL-10-1500 8		8%	0.308	18.75	692.8	9.4	1590	780	1320	662
XKGKL-10-1500-10		10%	0.385	15.00	866.1	11.3	1590	850	1330	718
XKGKL-10-1500-12		12%	0.462	12.50	1039.3	12.8	1700	880	1430	857
XKGKIA0-2000/5	2000	5%	0.144	40.00	577.4	9.1	1710	600	1580	544
XKGKL-10-2000-8		8%	0.231	25.00	923.8	11.6	1770	700	1590	746
XKGKL-10-2000-10		10%	0.289	20.00	1154.7	13.5	1870	730	1680	778
XKGKL-10-2000-12		12%	0.346	16.67	1385.7	14.9	1860	800	1680	1000
XKGKL-10-2500-5	2500	5%	0.115	50.00	721.7	10.2	1544	790	1280	678
XKGKL-10-2500-8		8%	0.185	31.25	1154.7	13.7	1600	960	1330	946
XKGKL-10-2500-10		10%	0.231	25.00	1443.4	15.3	1740	980	1480	1085
XKGKL-10-2500-12		12%	0.277	20.83	1732.1	18.1	1730	1000	1460	1200
XKGKL-10-3000-5	3000	5%	0.096	60.00	866.0	11.2	1620	830	1440	733
XKGKL-10-3000-8		8%	0.154	37.50	1386.0	15.1	1720	930	1540	975
XKGKL-10-3000-10		10%	0.192	30.00	1732.0	17.5	1750	1130	1650	1103
XKGKL-10-3000-12		12%	0.231	25.00	2079.0	19.1	1760	1030	1500	1253
XKGKL-10-3500-5	3500	5%	0.082	70.00	1010.0	12.7	1700	800	1440	980
XKGKL-10-3500-8		8%	0.132	43.75	1617.0	15.7	1820	880	1710	1322
XKGKL-10-3500-10		10%	0.165	35.00	2021.0	18.9	1820	950	1710	1500
XKGKL-10-3500-12		12%	0.198	29.17	2425.0	20.1	1820	1020	1710	1700
XKGKL-10-4000-5	4000	5%	0.072	80.00	1155.0	12.1	1750	800	1640	1058
XKGKL-10-4000 8		8%	0.115	50.00	1848.0	17.8	1880	880	1700	1461
XKGKL-10-4000-10		10%	0.144	40.00	2309.0	20.7	1970	880	1700	1687
XKGKL-10-4000-12		12%	0.173	33.33	2771.0	22.6	2010	930	1740	1833

35kV Series

XKGKL-35-200-4	200	4%	4.042	5.00	161	3.8	1590	600	1130	340	side by side
XKGKL-35-200-5		5%	5.052	4.00	202	4.7	1640	630	1180	410
XKGKL-35-200-6		6%	6.062	3.33	242	5.2	1700	630	1180	480
XKGKL-35-200-8		8%	8.083	2.50	323	6.3	1760	650	1570	560
XKGKL-35-400-5	400	5%	2.256	8.00	404	6.7	1780	730	1330	670
XKGKL-35-400 8		8%	4.042	5.00	646	8.4	1700	690	1510	880
XKGKL-35-400-10		10%	5.052	4.00	808	9.6	2000	680	1810	970
XKGKL-35-400 12		12%	6.062	3.33	970	10.7	2000	730	1810	1050
XKGKL-35-600-5	600	5%	1.684	12.00	606	8.2	1680	650	1550	850
XKGKL-35-600-8		8%	2.694	7.50	970	10.5	1980	700	1790	1120
XKGKL-35-600-10		10%	3.368	6.00	1212	12.9	1980	780	1790	1340
XKGKL-35-600-12		12%	4.042	5.00	1454	13.8	2030	800	1840	1520
XKGKL-35-800-5	800	5%	1.263	16.00	808	9.4	1800	650	1600	980
XKGKL-35-800-8		8%	2.021	10.00	1293	13.3	2100	650	1920	1420
XKGKL-35-800-10		10%	2.526	8.00	1616	14.9	2100	830	1920	1650
XKGKL-35-800-12		12%	3.031	6.67	1939	16.5	2100	760	1920	1720
XKGKL-35-1000-5	1000	5%	1.010	20.00	1010	10.2	1670	700	1540	1270
XKGKL-35-1000 8		8%	1.617	12.50	1616	14.2	1870	800	1680	1620
XKGKL-35-1000-10		10%	2.021	10.00	2020	16.9	1940	800	1750	1740
XKGKL-35-1000 12		12%	2.425	8.33	2424	18.6	2070	880	1880	1870
XKGKL-35-1500-5	1500	5%	0.674	30.00	1515	13.8	1700	750	1510	1550
XKGKL-35-1500-8		8%	1.078	18.75	2424	17.9	1820	800	1620	1910
XKGKL-35-1500-10		10%	1.347	15.00	3031	20.7	1800	900	1600	2200
XKGKL-35-1500-12		12%	1.617	12.50	3637	23.2	2300	900	2110	2380

1 Above technical parameters are only for aluminum windings. For copper windings, we would provide separately.

2 The products produced by Shanghai Zhiyou include but are not limited to the products listed in the table. If the customer has specified parameters, they need to confirm separately.

3 The data in the table are only for reference. The final interpretation right is owned by Shanghai Zhiyou.

Ordering Notice:

Please provide detailed parameters of the product.
Please provide us with as much product related information as possible regarding the product specifications, product drawings, product nameplates, product photos, etc. that you need to order, so that we can provide you with a faster and more accurate quotation.
Please provide the product specifications, product drawings, product nameplates, product photos, etc. that you need to order, send email to: shanghaizhiyou@gmail.com We will reply as soon as we receive the email.
You can also quickly contact our sales manager Yang through the following contact information: WeChat：+ 86 13122066665 or WhatsApp:+ 86 189 3091 2328.

We are willing to serve you with our professionalism, sincerity, and integrity.

Designed by a Leading Reactor Manufacturer for Fault Current Protection
ZHIYOU is a trusted reactor manufacturer offering advanced current limiting reactors for power systems requiring enhanced short-circuit protection. As part of our high-quality reactors product line, these units are engineered to increase system impedance and protect downstream equipment. We serve utilities, industrial users, and OEMs looking for reliable reactor brands with global reach and compliance.
Our solutions include dry-type and oil immersed reactor designs, widely adopted by EPCs and reactores suppliers across the globe.

Wide Range of Current Ratings and Voltage Classes
ZHIYOU's current limiting reactor portfolio includes models supporting 1000A reactor, 2000A reactor, 2500A reactor, 3000A reactor, and even 8000A reactor configurations. We offer voltage classes ranging from 10kV reactor, 35kV reactor, to 66kV reactor, with insulation designs suited for both indoor and outdoor environments.
These iron core reactors and series reactors are used extensively in medium and high-voltage systems to safely manage fault currents during short circuits and switchgear operations.

Versatile Integration with Power & Compensation Equipment
Our current limiting reactors integrate seamlessly with capacitor banks, bus coupling schemes, and substation feeders. They are also frequently used alongside shunt reactors, filter reactors, TCR reactors, and neutral grounding reactors to achieve a balanced, compensated, and protected electrical environment.
These types of reactors support both harmonic mitigation and overload control. Some versions double as damping reactors or starting reactors, depending on load characteristics and operational demand.

Global-Standard Construction & Competitive Reactor Price
All reactors are manufactured in compliance with IEC 60076 and national energy standards. Our core materials, insulation systems, and enclosure protections meet or exceed market requirements. Whether you are sourcing for new installations or equipment retrofits, ZHIYOU provides flexible customization with a globally competitive reactor price.
Compared with international options like ABB reactor, ZHIYOU offers a cost-effective alternative with faster delivery, OEM/ODM support, and long service life.

Product Advantages

High Fault Current Limitation Efficiency
ZHIYOU’s current limiting reactors significantly reduce peak short-circuit current levels, ensuring protection for downstream equipment such as circuit breakers, transformers, and capacitor banks.
Wide Application Compatibility
Available in dry and oil immersed reactor configurations, these series reactors can be used in substation buses, capacitor groups, and distributed power systems. They integrate easily with shunt reactors, filter reactors, and neutral grounding reactors for complete reactive power control.
Custom Built for High Current and Voltage Ratings
Models support a wide current range including 1000A, 2000A, 2500A, 3000A, 4000A, and up to 8000A reactors, with voltage options from 10kV, 35kV, to 66kV. Each unit is optimized based on system impedance and thermal requirements.
Certified Quality from a Trusted Reactor Brand
Built to IEC 60076 and other global standards, ZHIYOU offers proven quality comparable to ABB reactors, with more competitive reactor price, quick lead times, and global OEM/ODM support.
