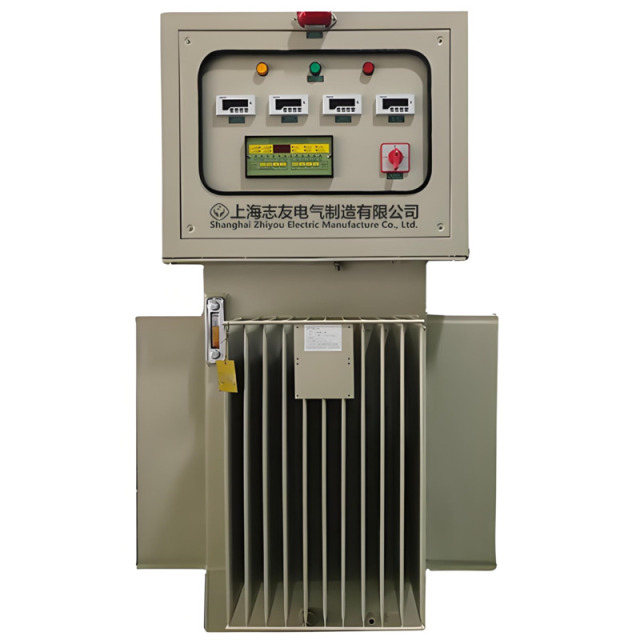

Boost Voltage Regulator (Long Distance Dedicated Boost Regulator)

Product Features:

1. Contactless, sturdy and durable, with a long service life.

The internal body is a motor induction voltage regulator, without any contact components or wear components (such as carbon brushes). It can withstand both sudden waves and nonlinear load impacts. The main characteristics are sturdy, durable, and easy to maintain.

2. Easy to maintain and upkeep

Adopting modular design, all components have been standardized. Just keep the interior clean without any special maintenance.

3. Complete protection facilities

The protection facilities are the most complete, with software filtering and anti false alarm functions.

Dual control circuit main and backup switching function; The fault recording function has built-in memory, with a maximum of 200 under phase and reverse phase protections; Input high/low voltage protection; Output high/low voltage protection; Output overload protection; High temperature protection.

4. Strong overload capacity and over capacity

This voltage regulator can withstand 100% load and can be used continuously, allowing 2-3 times the instantaneous current to pass through without damaging the device.

Technical parameters:

Product Name: Industrial Induction Voltage Regulator (Remote Dedicated Boosting Voltage Regulator)

Specification and model: 300-800KVA

Voltage stabilization range: 380V ± 15% Voltage stabilization accuracy: 380 ± 1%

Response time: ≤ 4ms/step efficiency ≥ 98%

Waveform distortion: none

Insulation resistance:> 2MΩ

Working temperature: (-5 ℃~+40 ℃)

This system uses a 16 bit microcontroller to form the control core. Through precise sampling of input voltage, output voltage, and load current IF signals, A/D conversion, the microcontroller makes intelligent judgments and issues control instructions. The polarity and size of Δ U are changed through the conduction combination of bidirectional thyristors to compensate for the input voltage Ui and maintain stable output voltage.

In addition, this product can also be equipped with optional accessories

1. Can be equipped with RS232/485 communication interface;
2. Can be equipped with two-stage or three-stage EMI filters;
3. Can be equipped with an output isolation transformer;
4. Can be equipped with lightning protection devices;
5. Multiple output control switches can be installed;
6. Two power automatic switching devices (ATS) can be installed.

2. Our company continuously develops and improves product specifications. If there are any changes to the specifications, no further notice will be given.
