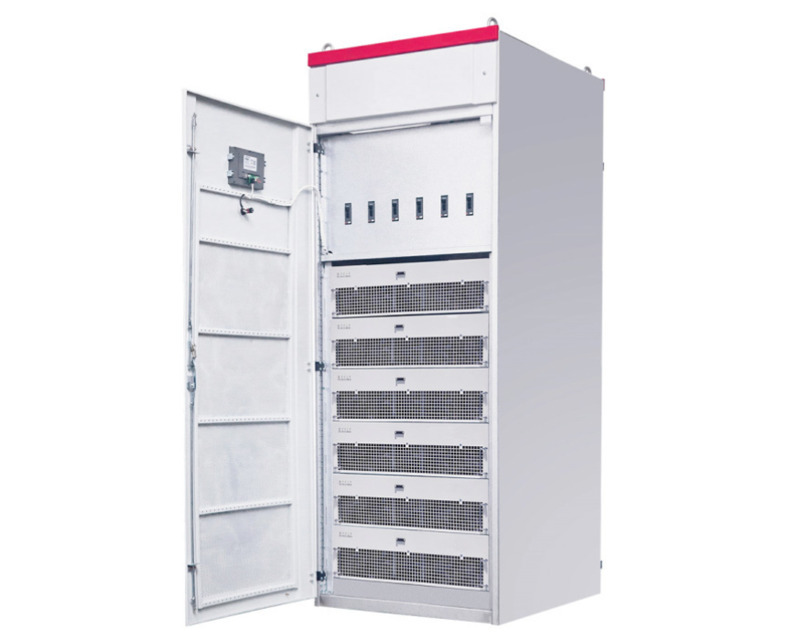

Active Filter Cabinet

Product Introduction:

The active filter cabinet adopts a modular standard design, and different capacity modules can be freely matched for easy installation and maintenance. The equipment adopts advanced simulation logic to detect the current waveform generated by nonlinear loads in the power grid in real time, dynamically generate reverse harmonic currents, and compensate for load harmonic currents. It can effectively eliminate 2-50 harmonics in the power grid and can choose specific harmonic compensation.

Active filter cabinets have the advantages of fast response speed, wide filtering range, high filtering efficiency, not affected by system parameters, complete protection functions, and small size, achieving the goal of improving power quality, reducing grid losses, improving power supply utilization efficiency and load capacity. They are ideal filtering products.

Active filtering devices are widely used in industries such as commercial construction, metallurgy and mining, automobile manufacturing, photovoltaics, petrochemicals, machinery, light industry, municipal, military, electronics, non-ferrous metals, and ships.

Performance characteristics:

1. Improve the safety and reliability of power grid supply: filter out harmonics, reduce line and equipment heating, reduce equipment failures, misoperations, inaccurate measuring instruments, communication interference and other safety hazards caused by harmonic pollution, and provide guarantees for the orderly progress of production and life.
2. Extremely low loss and low noise: The equipment adopts the fifth generation IGBT, which can significantly increase the switching frequency; When working at full load, the active power loss is ≤ 2.5%, which is 3%~4% lower than the mainstream industry indicator. When the whole machine is working at full load, the noise is ≤ 60dB.
3. Real time detection of dynamic compensation: Real time detection of harmonic currents, automatic tracking of load harmonic changes, with high controllability and fast responsiveness.
4. Safe and reliable performance: The filtering performance is not affected by system impedance. Resonance prediction governance effectively prevents capacitor capacity decay and avoids resonance risks.
5. Convenient maintenance: Standard modular design, plug and play, free combination, unlimited expansion.

Ordering Notice:

1. Please provide detailed parameters of the product.
2. Please provide us with as much product related information as possible regarding the product specifications, product drawings, product nameplates, product photos, etc. that you need to order, so that we can provide you with a faster and more accurate quotation.
3. Please provide the product specifications, product drawings, product nameplates, product photos, etc. that you need to order, send email to: shanghaizhiyou@gmail.com We will reply as soon as we receive the email.
4. You can also quickly contact our sales manager Yang through the following contact information: WeChat：+ 86 13122066665 or WhatsApp:+ 86 189 3091 2328.
